MPI_Type_create_darray

Create a datatype representing a distributed array
int MPI_Type_create_darray(
  int size,
  int rank,
  int ndims,
  int array_of_gsizes[],
  int array_of_distribs[],
  int array_of_dargs[],
  int array_of_psizes[],
  int order,
  MPI_Datatype oldtype,
  MPI_Datatype *newtype
);

Parameters

size
[in] size of process group (positive integer)
rank
[in] rank in process group (nonnegative integer)
ndims
[in] number of array dimensions as well as process grid dimensions (positive integer)
array_of_gsizes
[in] number of elements of type oldtype in each dimension of global array (array of positive integers)
array_of_distribs
[in] distribution of array in each dimension (array of state)
array_of_dargs
[in] distribution argument in each dimension (array of positive integers)
array_of_psizes
[in] size of process grid in each dimension (array of positive integers)
order
[in] array storage order flag (state)
oldtype
[in] old datatype (handle)
newtype
[out] new datatype (handle)

Remarks

MPI_TYPE_CREATE_DARRAY can be used to generate the datatypes corresponding to the distribution of an ndims-dimensional array of oldtype elements onto an ndims-dimensional grid of logical processes. Unused dimensions of array_of_psizes should be set to 1. For a call to MPI_TYPE_CREATE_DARRAY to be correct, the equation prodi=0ndims-1 array_of_psizes[i] = size must be satisfied. The ordering of processes in the process grid is assumed to be row-major, as in the case of virtual Cartesian process topologies in MPI-1.


Advice to users.

For both Fortran and C arrays, the ordering of processes in the process grid is assumed to be row-major. This is consistent with the ordering used in virtual Cartesian process topologies in MPI-1. To create such virtual process topologies, or to find the coordinates of a process in the process grid, etc., users may use the corresponding functions provided in MPI-1. ( End of advice to users.)


Each dimension of the array can be distributed in one of three ways:

  • MPI_DISTRIBUTE_BLOCK - Block distribution
  • MPI_DISTRIBUTE_CYCLIC - Cyclic distribution
  • MPI_DISTRIBUTE_NONE - Dimension not distributed.

The constant MPI_DISTRIBUTE_DFLT_DARG specifies a default distribution argument. The distribution argument for a dimension that is not distributed is ignored. For any dimension i in which the distribution is MPI_DISTRIBUTE_BLOCK, it erroneous to specify array_of_dargs[i] * array_of_psizes[i] < array_of_gsizes[i].

For example, the HPF layout ARRAY(CYCLIC(15)) corresponds to MPI_DISTRIBUTE_CYCLIC with a distribution argument of 15, and the HPF layout ARRAY(BLOCK) corresponds to MPI_DISTRIBUTE_BLOCK with a distribution argument of MPI_DISTRIBUTE_DFLT_DARG.

The order argument is used as in MPI_TYPE_CREATE_SUBARRAY to specify the storage order. Therefore, arrays described by this type constructor may be stored in Fortran (column-major) or C (row-major) order. Valid values for order are MPI_ORDER_FORTRAN and MPI_ORDER_C.

This routine creates a new MPI datatype with a typemap defined in terms of a function called "cyclic()" (see below).

Without loss of generality, it suffices to define the typemap for the MPI_DISTRIBUTE_CYCLIC case where MPI_DISTRIBUTE_DFLT_DARG is not used.

MPI_DISTRIBUTE_BLOCK and MPI_DISTRIBUTE_NONE can be reduced to the MPI_DISTRIBUTE_CYCLIC case for dimension i as follows.

MPI_DISTRIBUTE_BLOCK with array_of_dargs[i] equal to MPI_DISTRIBUTE_DFLT_DARG is equivalent to MPI_DISTRIBUTE_CYCLIC with array_of_dargs[i] set to

(mpiargarray_of_gsizes[i] + mpiargarray_of_psizes[i] - 1) / mpiargarray_of_psizes[i].

If array_of_dargs[i] is not MPI_DISTRIBUTE_DFLT_DARG, then MPI_DISTRIBUTE_BLOCK and MPI_DISTRIBUTE_CYCLIC are equivalent.

MPI_DISTRIBUTE_NONE is equivalent to MPI_DISTRIBUTE_CYCLIC with array_of_dargs[i] set to array_of_gsizes[i].

Finally, MPI_DISTRIBUTE_CYCLIC with array_of_dargs[i] equal to MPI_DISTRIBUTE_DFLT_DARG is equivalent to MPI_DISTRIBUTE_CYCLIC with array_of_dargs[i] set to 1.

For MPI_ORDER_FORTRAN, an ndims-dimensional distributed array ( newtype) is defined by the following code fragment:




    oldtype[0] = oldtype;
    for ( i = 0; i < ndims; i++ ) {
       oldtype[i+1] = cyclic(array_of_dargs[i],
                             array_of_gsizes[i],
                             r[i],
                             array_of_psizes[i],
                             oldtype[i]);
    }
    newtype = oldtype[ndims];
For MPI_ORDER_C, the code is:




    oldtype[0] = oldtype;
    for ( i = 0; i < ndims; i++ ) {
       oldtype[i + 1] = cyclic(array_of_dargs[ndims - i - 1],
                               array_of_gsizes[ndims - i - 1],
                               r[ndims - i - 1],
                               array_of_psizes[ndims - i - 1],
                               oldtype[i]);
    }
    newtype = oldtype[ndims];

where r[i] is the position of the process (with rank rank) in the process grid at dimension i. The values of r[i] are given by the following code fragment:




        t_rank = rank;
        t_size = 1;
        for (i = 0; i < ndims; i++)
                t_size *= array_of_psizes[i];
        for (i = 0; i < ndims; i++) {
            t_size = t_size / array_of_psizes[i];
            r[i] = t_rank / t_size;
            t_rank = t_rank % t_size;
        }
Let the typemap of oldtype have the form: {(type0,disp0),(type1,disp1),...,(typen-1,dispn-1)} where typei is a predefined MPI datatype, and let ex be the extent of oldtype.

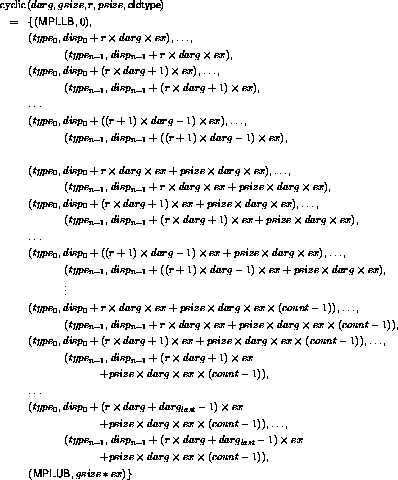

Given the above, the function cyclic() is defined as follows:

where count is defined by this code fragment:


        nblocks = (gsize + (darg - 1)) / darg;
        count = nblocks / psize;
        left_over = nblocks - count * psize;
        if (r < left_over)
            count = count + 1;
Here, nblocks is the number of blocks that must be distributed among the processors. Finally, darglast is defined by this code fragment:

        if ((num_in_last_cyclic = gsize % (psize * darg)) == 0)
             darg_last = darg;
        else
             darg_last = num_in_last_cyclic - darg * r;
             if (darg_last > darg)
                    darg_last = darg;
             if (darg_last <= 0)
                    darg_last = darg;


Example Consider generating the filetypes corresponding to the HPF distribution:


      <oldtype> FILEARRAY(100, 200, 300)
!HPF$ PROCESSORS PROCESSES(2, 3)
!HPF$ DISTRIBUTE FILEARRAY(CYCLIC(10), *, BLOCK) ONTO PROCESSES
This can be achieved by the following Fortran code, assuming there will be six processes attached to the run:

    ndims = 3
    array_of_gsizes(1) = 100
    array_of_distribs(1) = MPI_DISTRIBUTE_CYCLIC
    array_of_dargs(1) = 10
    array_of_gsizes(2) = 200
    array_of_distribs(2) = MPI_DISTRIBUTE_NONE
    array_of_dargs(2) = 0
    array_of_gsizes(3) = 300
    array_of_distribs(3) = MPI_DISTRIBUTE_BLOCK
    array_of_dargs(3) = MPI_DISTRIBUTE_DFLT_ARG
    array_of_psizes(1) = 2
    array_of_psizes(2) = 1
    array_of_psizes(3) = 3
    call MPI_COMM_SIZE(MPI_COMM_WORLD, size, ierr)
    call MPI_COMM_RANK(MPI_COMM_WORLD, rank, ierr)
    call MPI_TYPE_CREATE_DARRAY(size, rank, ndims, array_of_gsizes, &
         array_of_distribs, array_of_dargs, array_of_psizes,        &
         MPI_ORDER_FORTRAN, oldtype, newtype, ierr)

Thread and Interrupt Safety

This routine is thread-safe. This means that this routine may be safely used by multiple threads without the need for any user-provided thread locks. However, the routine is not interrupt safe. Typically, this is due to the use of memory allocation routines such as malloc or other non-MPICH runtime routines that are themselves not interrupt-safe.

Notes for Fortran

All MPI routines in Fortran (except for MPI_WTIME and MPI_WTICK) have an additional argument ierr at the end of the argument list. ierr is an integer and has the same meaning as the return value of the routine in C. In Fortran, MPI routines are subroutines, and are invoked with the call statement. All MPI objects (e.g., MPI_Datatype, MPI_Comm) are of type INTEGER in Fortran.

Errors

All MPI routines (except MPI_Wtime and MPI_Wtick) return an error value; C routines as the value of the function and Fortran routines in the last argument. Before the value is returned, the current MPI error handler is called. By default, this error handler aborts the MPI job. The error handler may be changed with MPI_Comm_set_errhandler (for communicators), MPI_File_set_errhandler (for files), and MPI_Win_set_errhandler (for RMA windows). The MPI-1 routine MPI_Errhandler_set may be used but its use is deprecated. The predefined error handler MPI_ERRORS_RETURN may be used to cause error values to be returned. Note that MPI does not guarentee that an MPI program can continue past an error; however, MPI implementations will attempt to continue whenever possible.
MPI_SUCCESS
No error; MPI routine completed successfully.
MPI_ERR_TYPE
Invalid datatype argument. May be an uncommitted MPI_Datatype (see MPI_Type_commit).
MPI_ERR_ARG
Invalid argument. Some argument is invalid and is not identified by a specific error class (e.g., MPI_ERR_RANK).

Example Code

The following sample code illustrates MPI_Type_create_darray.

#include "mpi.h"
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

/* tests */
int darray_2d_c_test1(void);
int darray_4d_c_test1(void);
/* helper functions */
static int parse_args(int argc, char **argv);
static int pack_and_unpack(char *typebuf, int count, MPI_Datatype datatype, int typebufsz);

int main(int argc, char **argv)
{

int err, errs = 0;

    MPI_Init(&argc, &argv);
    /* To improve reporting of problems about operations, we change the error handler to errors return */
    MPI_Comm_set_errhandler( MPI_COMM_WORLD, MPI_ERRORS_RETURN );


/* perform some tests */
    err = darray_2d_c_test1();
    if (err) { fprintf(stderr, "%d errors in 2d darray c test 1.\n", err);fflush(stderr); }
    errs += err;

    err = darray_4d_c_test1();

if (err) { fprintf(stderr, "%d errors in 4d darray c test 1.\n", err);fflush(stderr); }
    errs += err;

    MPI_Finalize();
    return errs;
}

/* darray_2d_test1()
 *
 * Performs a sequence of tests building darrays with single-element
 * blocks, running through all the various positions that the element might
 * come from.
 *
 * Returns the number of errors encountered.
 */
int darray_2d_c_test1(void)
{
    MPI_Datatype darray;
    int array[9]; /* initialized below */

int array_size[2] = {3, 3};
    int array_distrib[2] = {MPI_DISTRIBUTE_BLOCK, MPI_DISTRIBUTE_BLOCK};
    int array_dargs[2] = {MPI_DISTRIBUTE_DFLT_DARG, MPI_DISTRIBUTE_DFLT_DARG};
    int array_psizes[2] = {3, 3};
    int i, rank, err, errs = 0, sizeoftype;

    /* pretend we are each rank, one at a time */
    for (rank=0; rank < 9; rank++) {

    /* set up buffer */
        for (i=0; i < 9; i++) {
            array[i] = i;
        }
        /* set up type */
        err = MPI_Type_create_darray(9 /* size */, rank, 2 /* dims */, array_size, array_distrib, array_dargs, array_psizes, MPI_ORDER_C, MPI_INT, &darray);

if (err != MPI_SUCCESS) {
            errs++;
            fprintf(stderr, "error in MPI_Type_create_darray call; aborting after %d errors\n", errs); fflush(stderr);

return errs;
        }

        MPI_Type_commit(&darray);
        MPI_Type_size(darray, &sizeoftype);

if (sizeoftype != sizeof(int)) {
            errs++;
            fprintf(stderr, "size of type = %d; should be %d\n", sizeoftype, (
int) sizeof(int));fflush(stderr);

return errs;
        }

        err = pack_and_unpack((
char *) array, 1, darray, 9*sizeof(int));


for (i=0; i < 9; i++) {
            if ((i == rank) && (array[i] != rank)) {
                errs++;
                fprintf(stderr, "array[%d] = %d; should be %d\n", i, array[i], rank);fflush(stderr);
            }

else if ((i != rank) && (array[i] != 0)) {
                errs++;
                fprintf(stderr, "array[%d] = %d; should be %d\n", i, array[i], 0);fflush(stderr);
            }
        }
        MPI_Type_free(&darray);
    }
    return errs;
}

/* darray_4d_c_test1()
 *
 * Returns the number of errors encountered.
 */
int darray_4d_c_test1(void)
{
    MPI_Datatype darray;

int array[72];

int array_size[4] = {6, 3, 2, 2};
    int array_distrib[4] = { MPI_DISTRIBUTE_BLOCK,
                                   MPI_DISTRIBUTE_BLOCK,
                                   MPI_DISTRIBUTE_NONE,
                                   MPI_DISTRIBUTE_NONE };
    int array_dargs[4] = { MPI_DISTRIBUTE_DFLT_DARG,
                                   MPI_DISTRIBUTE_DFLT_DARG,
                                   MPI_DISTRIBUTE_DFLT_DARG,
                                   MPI_DISTRIBUTE_DFLT_DARG };
    int array_psizes[4] = {6, 3, 1, 1};

int i, rank, err, errs = 0, sizeoftype;


for (rank=0; rank < 18; rank++) {

/* set up array */

for (i=0; i < 72; i++) {
            array[i] = i;
        }

        /* set up type */
        err = MPI_Type_create_darray(18 /* size */, rank, 4 /* dims */, array_size, array_distrib, array_dargs, array_psizes, MPI_ORDER_C, MPI_INT, &darray);
        if (err != MPI_SUCCESS) {
            errs++;
            fprintf(stderr, "error in MPI_Type_create_darray call; aborting after %d errors\n", errs);fflush(stderr);
            return errs;
        }
        MPI_Type_commit(&darray);

/* verify the size of the type */

MPI_Type_size(darray, &sizeoftype);

if (sizeoftype != 4*sizeof(int)) {
            errs++;
            fprintf(stderr, "size of type = %d; should be %d\n", sizeoftype, (
int) (4*sizeof(int)));fflush(stderr);

return errs;
        }

/* pack and unpack the type, zero'ing out all other values */

err = pack_and_unpack((char *) array, 1, darray, 72*sizeof(int));

for (i=0; i < 4*rank; i++) {

if (array[i] != 0) {
                errs++;
                fprintf(stderr, "array[%d] = %d; should be %d\n", i, array[i], 0);fflush(stderr);
            }
        }

for (i=4*rank; i < 4*rank + 4; i++) {

if (array[i] != i) {
                errs++;
                fprintf(stderr, "array[%d] = %d; should be %d\n", i, array[i], i);fflush(stderr);
            }
        }
        for (i=4*rank+4; i < 72; i++) {

if (array[i] != 0) {
                errs++;
                fprintf(stderr, "array[%d] = %d; should be %d\n", i, array[i], 0);fflush(stderr);
            }
        }
        MPI_Type_free(&darray);
    }

return errs;
}

/******************************************************************/
/* pack_and_unpack()
 *
 * Perform packing and unpacking of a buffer for the purposes of checking
 * to see if we are processing a type correctly. Zeros the buffer between
 * these two operations, so the data described by the type should be in
 * place upon return but all other regions of the buffer should be zero.
 *
 * Parameters:
 * typebuf - pointer to buffer described by datatype and count that
 * will be packed and then unpacked into
 * count, datatype - description of typebuf
 * typebufsz - size of typebuf; used specifically to zero the buffer
 * between the pack and unpack steps
 *
 */
static int pack_and_unpack(char *typebuf, int count, MPI_Datatype datatype, int typebufsz)
{

char *packbuf;
    int err, errs = 0, pack_size, type_size, position;

    err = MPI_Type_size(datatype, &type_size);
    if (err != MPI_SUCCESS) {
        errs++;
        fprintf(stderr, "error in MPI_Type_size call; aborting after %d errors\n", errs);fflush(stderr);
        return errs;
    }
    type_size *= count;
    err = MPI_Pack_size(count, datatype, MPI_COMM_SELF, &pack_size);

if (err != MPI_SUCCESS) {
        errs++;
        fprintf(stderr, "error in MPI_Pack_size call; aborting after %d errors\n", errs);fflush(stderr);

return errs;
    }
    packbuf = (
char *) malloc(pack_size);

if (packbuf == NULL) {
        errs++;
        fprintf(stderr, "error in malloc call; aborting after %d errors\n", errs);fflush(stderr);
        return errs;
    }
    position = 0;
    err = MPI_Pack(typebuf, count, datatype, packbuf, type_size, &position, MPI_COMM_SELF);
    if (position != type_size) {
        errs++;
        fprintf(stderr, "position = %d; should be %d (pack)\n", position, type_size);fflush(stderr);
    }
    memset(typebuf, 0, typebufsz);
    position = 0;
    err = MPI_Unpack(packbuf, type_size, &position, typebuf, count, datatype, MPI_COMM_SELF);

if (err != MPI_SUCCESS) {
        errs++;
        fprintf(stderr, "error in MPI_Unpack call; aborting after %d errors\n", errs);fflush(stderr);
        return errs;
    }
    free(packbuf);
    if (position != type_size) {
        errs++;
        fprintf(stderr, "position = %d; should be %d (unpack)\n", position, type_size);fflush(stderr);
    }

return errs;
}
